Copper Perforated Tool Plate - Precision Testing Solutions

Product Introduction

When you require solid exactness for electronic and semiconductor testing, our copper perforated tool plate conveys uncommon execution each time. Built from premium C17200 beryllium copper, this specialized testing installation guarantees exact situating and predominant conductivity for your most requesting applications. The absolutely built gap framework gives steady comes about whereas keeping up extraordinary toughness all through amplified utilize cycles.

Our instrument plates include progressed gold plating surface treatment and rigid quality controls. You get professional-grade execution with gap exactness coming to ±0.01mm. Each plate experiences thorough testing to meet universal standards.

Main Advantages

Superior Material Performance

• Premium C17200 beryllium copper construction
• Excellent electrical conductivity for reliable testing
• Outstanding wear resistance extends service life significantly

Precision Engineering

• Multi-hole positioning accuracy ≤0.01mm
• Exceptional flatness specification ≤0.02mm/100mm
• Advanced CNC milling ensures consistent quality

Enhanced Durability

• Gold plating surface treatment (0.5-1.0μm thickness)
• Hardness rating HRC 36-42 for long-term reliability
• Excellent fatigue strength withstands repeated use

Specifications

Why Choose Us?

15 Years of Manufacturing Excellence

Since 2011, Wuxi Kaihan Technology has specialized in precision manufacturing. Our experienced team includes professionals from Singapore's leading enterprises, ensuring world-class quality standards.

Cost-Effective Solutions

Benefit from China's supply chain advantages with 30-40% cost savings without compromising quality. Our copper perforated tool plate offers exceptional value for precision testing applications.

Advanced Quality Systems

ISO9001:2015 certification and comprehensive quality controls guarantee consistent performance. Every product undergoes strict inspection before delivery.

Customization Process

Step 1: Requirements Analysis

Share your specifications including dimensions, hole patterns, and surface treatment preferences.

Step 2: Design Optimization

Our engineering team creates detailed drawings and confirms technical parameters.

Step 3: Sample Production

We manufacture samples for your approval before full production begins.

Step 4: Quality Production

Using advanced CNC equipment, we produce your custom solution with precision.

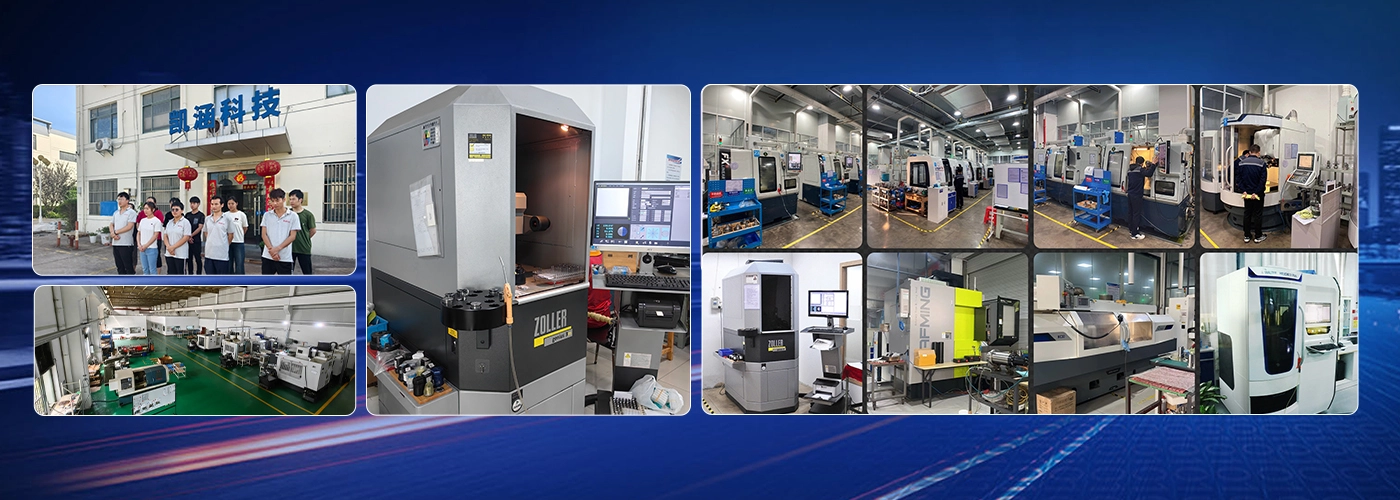

Factory Strength

Our state-of-the-art office highlights progressed generation gear and exactness testing disobedient. With 36% investigate faculty and 8% yearly income contributed in R&D, we keep up mechanical leadership.

We hold 22 licenses and work an set up incline generation framework. This empowers solid associations with worldwide industry pioneers whereas guaranteeing reliable quality conveyance.

Quality Certification

• ISO9001:2015 Quality Management System
• EU RoHS Standards Compliance
• Comprehensive material traceability
• Rigorous inspection protocols

Transport Packaging

Professional packaging ensures your copper perforated tool plate arrives in perfect condition. We use protective foam cushioning and moisture-resistant materials for secure shipping worldwide.

Each package includes quality certificates and handling instructions for immediate use upon arrival.

FAQ

Q: What's the minimum order quantity?

A: We accommodate both small batch orders and large production runs based on your requirements.

Q: Can you achieve higher hole positioning accuracy?

A: Yes, using specialized CNC processes, we can achieve hole positioning accuracy up to ±0.005mm for demanding applications.

Q: Do you support other surface treatments?

A: Absolutely. We offer silver plating, tin plating, and enhanced gold plating (≥3μm thickness) for specific conductivity requirements.

Q: What's included with sample service?

A: Sample service includes one prototype with complete specifications testing and detailed quality report.

Contact Us

Ready to enhance your testing precision? Our copper perforated tool plate's technical team is here to help you select the perfect solution for your application needs.

Email: service@kaihancnc.com

Contact us today to discuss your requirements and receive a customized quote for your next project.
