Precision CNC Machining for Robotics — High-Accuracy Joint Flanges with Aerospace-Grade Aluminum

High-performance robotic equipment requires structural components with stable dimensional accuracy and durable structural strength to adapt to complex and high-frequency operating scenarios. Wuxi Kaihan Technology Co., Ltd. focuses on Precision CNC Machining for Robotics, specializing in custom manufacturing of industrial robot joint precision mounting flanges.

Adopting premium 7075-T6 aerospace-grade aluminum alloy, our products are processed via professional CNC milling and matched with industrial hard anodizing treatment. With 15 years of precision manufacturing experience and 22 technical patents, we stably control the key hole machining accuracy at ±0.01mm. Our high-quality Precision CNC Machining components help global B-end clients reduce procurement costs by 30%–40%, with zero compromise on structural performance and machining precision.

What Makes These Robot Joint Flanges Stand Out

Custom engineered for multi-axis industrial robots and collaborative robot high-dynamic joint working conditions, our aluminum joint flanges serve as the core connecting structure for robot joints, reducers and motors. They deliver precise positioning accuracy and stable torque transmission performance to ensure consistent and efficient operation of automation equipment.

The standard finished flange weighs about 4kg. The lightweight design effectively lowers the motion inertia of robotic arms, while the high-rigidity aerospace aluminum material maintains excellent structural stability, fully adapting to long-term continuous cyclic operation in industrial scenarios. The optimized combination of professional material selection, precision machining and industrial surface treatment guarantees long-term stable performance of the components.

Material and Surface Treatment

All our robot joint flanges are forged from 7075-T6 aerospace-grade aluminum alloy, a mainstream material widely used in aviation structural parts. Featuring an ultra-high strength-to-weight ratio, this material perfectly meets the dual demands of robotic joints for load-bearing capacity and flexible motion response.

The component surface adopts industrial-grade hard anodizing technology to form a dense, tightly bonded oxide protective film with surface hardness up to HV≥400. The treated surface delivers excellent wear resistance and corrosion resistance, effectively resisting erosion from workshop dust, cutting fluid and long-term mechanical friction, ensuring stable operation in harsh industrial environments.

To meet differentiated project demands, we support customized adjustment of anodizing thickness and surface color for all finished products.

Technical Specifications

Precision Machining Capabilities and Quality Control

We adopt scientific graded precision machining standards for Precision CNC Machining for Robotics to balance ultra-high precision and reasonable cost control. Critical assembly holes that determine fitting accuracy are strictly controlled within ±0.01mm, while non-functional auxiliary surfaces are controlled at 0.1mm, fully matching the precision requirements of mid-to-high-end robotic automation equipment.

Unified precision machining positioning is adopted for flange hole positions and mounting reference surfaces to ensure high coaxiality with reducers and motors, effectively reducing cumulative positioning errors during robot assembly and improving overall equipment operation accuracy. The contact surface is finely processed to Ra1.6–Ra3.2 roughness, ensuring tight fitting and stable torque transmission during repeated assembly and operation.

The entire production process is standardized under our ISO 9001:2005 quality management system, with strict inspections implemented from raw material incoming verification to finished product delivery, ensuring 100% qualified batch products.

Applications in Industrial Robotics

This series of precision joint flanges is mainly applied to the joint connection parts of multi-axis industrial robots and collaborative robots, serving as the core structural interface connecting robotic arms, reducers and drive motors. Working in high-cycle automated production environments, robot joints bear repeated vibration, load impact and temperature changes for a long time.

The combination of high-strength 7075-T6 aluminum alloy and wear-resistant hard anodizing layer effectively resists structural fatigue and surface abrasion, greatly extending the service life of the robot joint system. Our reliable Precision CNC Machining for Robotics solutions are widely used in automotive assembly, electronic manufacturing, precision logistics and other industries, providing stable precision support for high-efficiency automated production lines.

Customization and B2B Supply Advantages

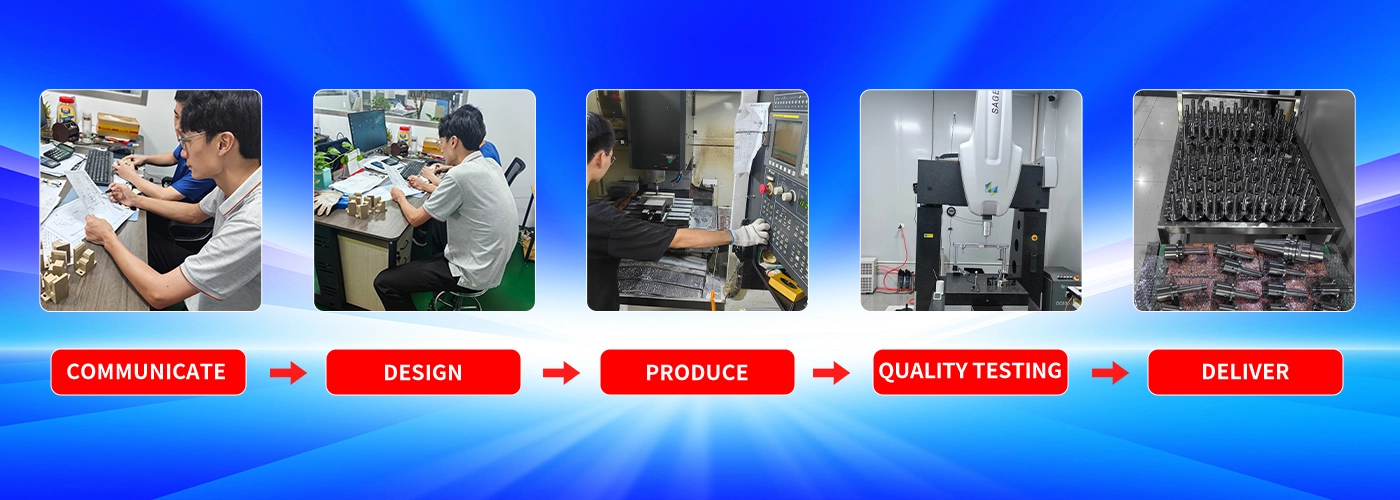

We support full drawing-based personalized customization for global industrial clients. All core parameters including flange hole positions, overall dimensions, tolerance grades and mounting interface standards can be adjusted according to customers’ robot design specifications and actual application scenarios.

Our technical team consists of senior engineers with overseas top manufacturing experience, among whom R&D personnel account for 36% of the total staff, with annual R&D investment reaching 8% of total revenue. We focus on technical innovation and precision manufacturing rather than simple volume production, delivering professional customized solutions for high-precision robotic components.

Compared with European and American suppliers, our localized China manufacturing supply chain can help clients save 30%–40% of procurement costs. It is hard to find equivalent high-precision robotic flange products with such cost performance in overseas markets.

Frequently Asked Questions

Q1: Is this robot joint flange compatible with mainstream robot brands?

A1: Yes. It is universally adaptable to mainstream robot brands such as ABB, KUKA and FANUC. We support full customization of hole positions, dimensions and mounting interfaces according to your drawings to match standard and non-standard robot joint specifications.

Q2: Will the hard anodized coating peel off during long-term friction?

A2: No. The industrial hard anodized film is dense and highly adhesive. It features excellent wear resistance and anti-stripping performance under normal joint operation and mechanical friction, fully meeting long-term industrial use requirements. Coating thickness and color can be customized.

Q3: Can you customize different sizes and precision grades?

A3: Absolutely. We formulate exclusive dimensional and tolerance solutions based on your robot’s load capacity, joint torque and precision demands. Key functional interfaces maintain ±0.01mm high precision, while non-key surfaces can be adjusted appropriately to control procurement costs.

Q4: Is the flange weight adjustable for different robot payloads?

A4: The standard product weighs about 4kg. We can adjust the overall weight by optimizing structural dimensions and design schemes to match your robot’s inertia and payload requirements.

Q5: What surface roughness can be achieved for assembly contact surfaces?

A5: The standard contact surface roughness is Ra1.6–Ra3.2, which ensures tight fitting and stable torque transmission. Finer surface finishing can be customized according to your assembly and matching standards.

Q6: How do you guarantee batch dimensional consistency?

A6: We operate under ISO 9001:2005 quality system. Full-process precision testing is implemented for each batch, with strict verification of key hole tolerance and reference surface coaxiality to ensure zero dimensional deviation in mass production.

Contact Us

If you are looking for stable and high-precision Precision CNC Machining for Robotics and custom robot joint flange components, feel free to send your engineering drawings and technical requirements to our professional team. We provide one-stop technical evaluation, customized solutions and cost-effective bulk procurement services for global industrial clients. Contact us via email: service@kaihancnc.com for timely support and quotation.
