Custom Precision Machined Parts

Custom Precision Machined Parts for Fluid Equipment — Q345 Square Cavity Components with ±0.01mm Accuracy

Wuxi Kaihan Technology Co., Ltd. delivers Custom Precision Machined Parts engineered for demanding industrial environments. This square cavity component is precision-milled from Q345 low-alloy high-strength steel using three-axis/four-axis CNC milling. Critical hole accuracy reaches ±0.01mm, with smooth inner walls and mounting surfaces ready for immediate assembly. Backed by 15 years of manufacturing experience, 22 patents, and an ISO 9001-certified quality system, Kaihan provides reliable, cost-effective machined solutions for global industrial buyers — with China supply chain advantages offering 30%–40% cost savings compared to Western sources.

Product Characteristics

This square cavity component is purpose-built for fluid equipment applications. The body is milled from Q345 low-alloy high-strength structural steel, a material recognized for its high yield strength, excellent toughness, and resistance to long-term mechanical fatigue. This makes it well-suited for environments involving alternating loads and sustained pressure cycles.

The inner wall surfaces and mounting faces are machined to a clean natural finish. You get consistent surface smoothness without the need for secondary finishing in most standard installations. For environments requiring enhanced corrosion protection, optional surface treatments are available — including passivation and blackening for stainless steel variants, and chrome plating, nickel plating, blackening, painting, electrophoretic coating, or spraying for iron-based parts.

The installation design uses a top threaded hole for secure fixing, combined with a side cavity structure that simplifies integration into existing system layouts.

Technical Specifications

Key Advantages

High Strength and Load Resistance

Q345 steel combines elevated yield strength with reliable toughness. In hydraulic circuits, pneumatic assemblies, or industrial automation frames, this component holds up under sustained mechanical loads and cyclical stress without dimensional drift.

Consistent Assembly Precision

All critical hole positions are controlled to ±0.01mm. This tight tolerance ensures that every unit you receive delivers repeatable positioning accuracy — critical when integrating into precision instruments or multi-component assemblies where alignment errors accumulate.

Customizable to Your Drawing

The standard square cavity geometry is a starting point, not a limitation. You can specify custom flow channel routing, additional interface ports, or modified mounting hole patterns. Kaihan's engineering team works directly from your CAD drawings, making this suitable for both standard and application-specific hydraulic, pneumatic, and testing equipment builds.

Low Maintenance, Long Service Life

The natural machined finish is clean and dimensionally stable. With optional passivation or blackening, the surface gains meaningful rust and corrosion resistance — keeping long-term maintenance costs low even in humid or fluid-contact environments.

Application Scenarios

This component functions effectively as a fluid distribution cavity, channeling media flow between ports in hydraulic manifolds or pneumatic control blocks. It also works as an equipment adapter, bridging two subsystems with aligned mounting geometry. As a sealing mounting base, it provides a flat, stable reference surface for gaskets, valves, or sensors.

Industries that regularly use this type of precision-milled cavity component include:

• Industrial automation — structural mounting blocks, interface adapters within automated assembly lines
• Hydraulic and pneumatic systems — distribution chambers and valve mounting bases requiring tight port alignment
• Testing and measurement instruments — sealing fixtures and precision mounts where dimensional consistency directly affects measurement reliability

Each application demands different combinations of tolerance, surface condition, and material integrity — all of which this component is designed to deliver as part of a broader custom precision machined parts solution.

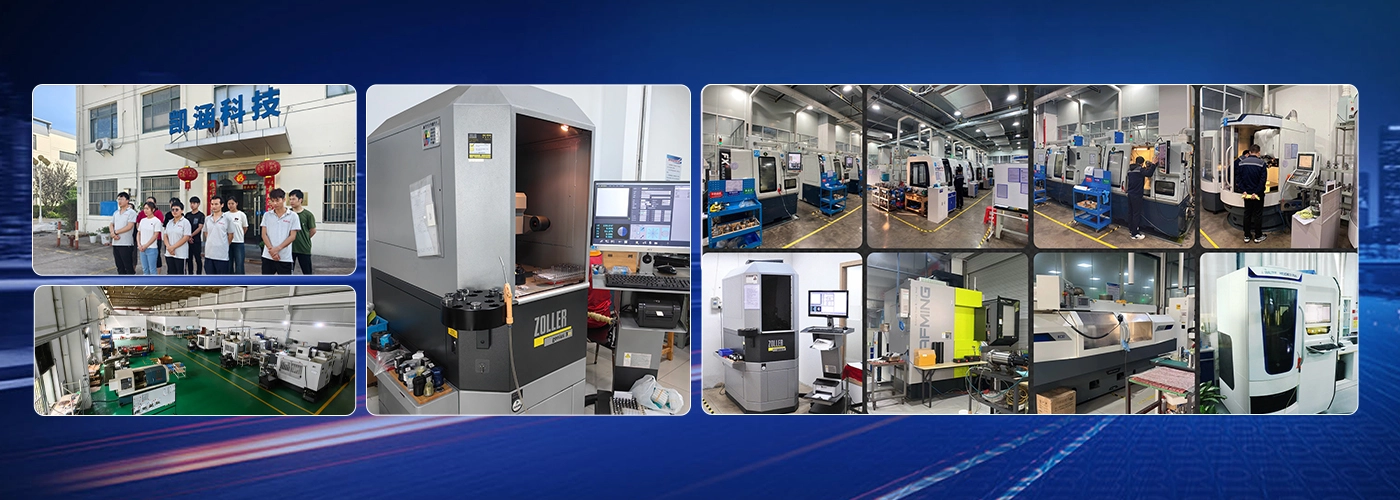

Quality Control and Manufacturing Capability

Kaihan operates under an ISO 9001-certified quality management system. The factory integrates advanced CNC machining centers with precision measurement instruments to verify dimensional compliance at each production stage. Non-critical plane flatness and parallelism are held within 0.05mm, ensuring that mounting surfaces remain reliable references across assembled equipment.

With 36% of staff engaged in research roles and 8% of annual revenue reinvested into R&D, the manufacturing process is continuously refined. The team includes professionals trained at Singapore's leading engineering enterprises, bringing a rigorous process discipline to every batch. You benefit from stable quality control without the overhead of managing multiple suppliers.

FAQ

Q1: What equipment is this Q345 square cavity component designed for?

It is primarily designed for use as a fluid distribution chamber, equipment adapter, or sealing mounting base. Typical applications include industrial automation systems, hydraulic and pneumatic equipment, and testing instruments. Custom configurations based on your engineering drawings are also supported.

Q2: How is the ±0.01mm hole accuracy maintained across production batches?

Kaihan uses high-precision CNC milling centers calibrated regularly under the ISO 9001 quality system. Each critical hole position is verified with precision measurement instruments. Non-critical planes are held to flatness and parallelism within 0.05mm, ensuring consistent assembly performance across every batch.

Q3: What surface treatment options are available?

The standard delivery is a natural machined finish with no coating. On request, stainless steel parts can be passivated; iron-based parts support chrome plating, nickel plating, blackening, painting, electrophoretic coating, or spraying. The right treatment depends on your environment and corrosion resistance requirements.

Q4: Can the cavity geometry be modified to match our system layout?

Yes. The square cavity structure supports full customization of flow channel routing, port interfaces, and mounting hole positions. You provide the drawings, and Kaihan's engineering team will machine to your exact specifications.

Q5: What is the lead time for custom orders?

Lead time varies based on complexity and order volume. Contact Kaihan directly with your drawing and quantity requirements to receive an accurate production schedule and quotation.

Q6: Why source custom precision machined parts from Kaihan rather than a local supplier?

Kaihan's China-based manufacturing delivers 30%–40% cost savings compared to equivalent Western sources, without compromising on dimensional accuracy or material quality. With 15 years of experience, 22 patents, and partnerships with global industry leaders, you get engineering-grade components at a competitive price point backed by full pre- and post-sales technical support.

Contact Us

Ready to discuss your project? Send your drawings and requirements to service@kaihancnc.com — Kaihan's team will respond promptly with a tailored solution.
