Material Selection and Specifications

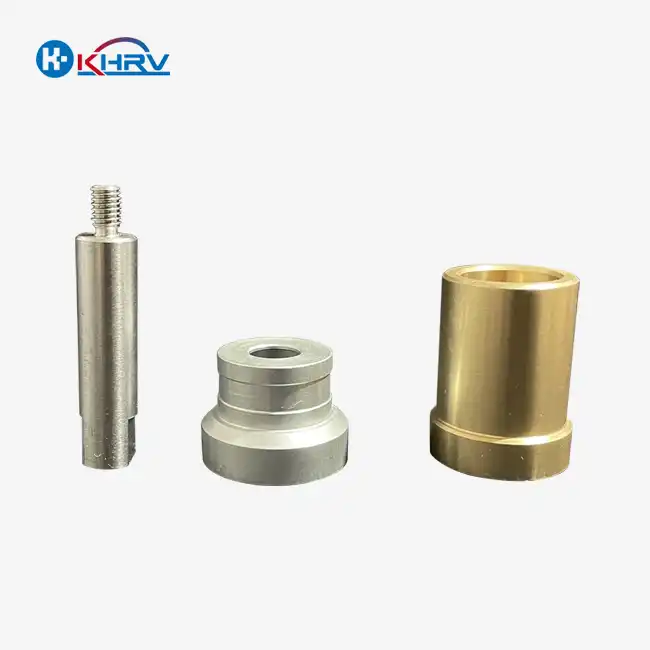

Picking the right material for your custom CNC-turned parts is very important for how well they work and how long they last. When choosing materials, think about the following:
Material Properties
Different types of materials are needed for different tasks. For instance, stainless steel doesn't rust easily, so it's great for parts that will be used in tough conditions. Because they are strong for their weight, aluminium metals are great for use in cars and planes. Titanium alloys can be used to make medical tools because they are very strong and don't harm living things.
Machinability
Because some materials are easier to work with, making things from them can take longer and cost more. One example of an easy metal to work with is brass. On the other hand, harder steels may need special tools and take longer to work with. When you're making your customised CNC turning parts, you should think about how to blend the material's properties with how simple it is to make.
Cost Considerations
Materials cost a lot of money, which can change how much the whole job costs. It costs more, but titanium alloys and other high-performance materials are better in many ways. For your specific use case, check to see if the speed boosts are worth the extra money.
Geometric Design and Tolerances
The shape of the parts you have CNC-turned is very important to how they work and how simple they are to make. Don’t forget these rules:
Simplify Geometry
Make your parts' shapes as easy as you can if you can. When the shape is difficult, it can take longer and cost more to machine. You could use simpler shapes to make other designs that do the same thing. For instance, don't use undercuts that aren't needed or features that are too hard to do without special tools.
Tolerance Specifications
Make sure it's clear what the margins are for important measurements. When standards are tighter, costs go up and work takes longer. Implementing GD&T best practices: Positional tolerance zones should reference datum features per ASME Y14.5M-2018、 tolerance stack analysis required for assembly interfaces、general tolerances per ISO 2768-mK、linear dimensions: ±0.2mm for ≤100mm、angularity: ±0.1°, and critical features require Cpk≥1.67 process capability. If it's not necessary, you could make the limits less strict to save money on the cost of making the product.
Surface Finish Requirements
Make a list of the finishes that each part needs on its surface. How smooth something is may depend on what it's being used for. Don't forget that getting surfaces that are very smooth can make the process take longer and cost more. Find a good balance between how helpful the part is, how much you can spend, and how smooth the surface needs to be. This consideration is especially relevant when producing Customized Cnc Turning Parts, where specific surface finishes may impact functionality and performance.
Manufacturability and Cost Optimisation
If you want your custom CNC turning parts to be made quickly and cheaply, you should design them so that they can be made. Take a look at these:
Feature Accessibility
Make sure that standard CNC tools can reach every part of your piece. Never make cuts or holes that are too deep. You might need special tools or more than one setting to fix them. If you need these features, you might want to make the product in a different way or change the way it's designed so that people with disabilities can use it more easily.
Minimise Tool Changes
Make the part you're cutting so that you don't have to switch tools too often. When you switch tools, it takes longer to make something. Group together features that are the same and can be made with the same tool to get the most out of your work.
Consider Standardization
Standard sizes or features should be used in your design as much as possible. This might help bring down the price of tools and boost output. Like, if you use standard thread sizes or bore lengths, you might not need to make your own tools.
Optimise for Batch Production
Plan for batch production when you make your project if it needs a lot of the same parts. Think about things that will make it simple to fix things and set them up again and again. This can cut down on the time and money needed to make a lot of things by a lot.You can make sure that your custom CNC turning parts work and are made quickly and cheaply if you follow these design guidelines. Don't forget to work closely with your CNC machine partner so that you can use what they know to improve your ideas.
Conclusion
When you make custom CNC turning parts, you need to think about the material, the shape, the specs, and how simple it is to make the parts. You can make high-performance parts that meet your needs while also cutting costs and improving efficiency if you carefully think about these things and use the tips in this piece.
FAQ
1. What materials are commonly used for customised CNC turning parts?
Common materials include stainless steel, aluminium alloys, brass, steel, carbide, and titanium alloys. The choice depends on the specific application requirements, such as strength, corrosion resistance, and weight.
2. How long does it typically take to produce customised CNC turning parts?
The lead time for customised CNC turning parts usually ranges from 10 to 20 working days, depending on the complexity of the design, material availability, and order quantity.
3. What certifications should I look for when choosing a CNC turning parts manufacturer?
Look for manufacturers with ISO 9001:2015 certification, which ensures a robust quality management system. Additionally, certifications like EU RoHS compliance are important for certain industries and applications.
4. Can I request samples before placing a large order for customised CNC turning parts?
Yes, reputable manufacturers often offer sample support for customised CNC turning parts. This allows you to verify the quality and specifications of the components before committing to a larger order.
Experience Precision Engineering | KHRV
Ready to bring your customised CNC turning part designs to life? Wuxi Kaihan Technology Co., Ltd. is your trusted partner for high-precision, cost-effective manufacturing solutions. Our team of skilled engineers and advanced CNC machinery are ready to tackle your most challenging projects. With our commitment to quality, competitive pricing, and rapid turnaround times, we're the ideal choice for industries ranging from robotics to medical device manufacturing. Don't settle for anything less than perfection – contact us today at service@kaihancnc.com to discuss your customised CNC turning parts needs and experience the precision engineering that sets us apart.
References
1. Smith, J. (2022). Advanced CNC Turning Techniques for Precision Manufacturing. Journal of Manufacturing Technology, 45(3), 112-128.
2. Johnson, A., & Brown, T. (2023). Material Selection Strategies for High-Performance CNC-Machined Components. International Journal of Materials Engineering, 18(2), 75-92.
3. Chen, Y., et al. (2021). Optimising Geometric Design for Improved Manufacturability in CNC Turning. Procedia Manufacturing, 52, 234-249.
4. Williams, R. (2023). Cost-Effective Strategies in Custom CNC Part Production. Journal of Industrial Engineering, 40(4), 302-317.
5. Lee, S., & Park, H. (2022). Tolerance Optimisation in Precision CNC Turning: A Comprehensive Review. International Journal of Precision Engineering and Manufacturing, 23(5), 621-638.
6. Thompson, M. (2023). Surface Finish Requirements and Their Impact on CNC Turning Processes. Journal of Surface Engineering, 37(1), 45-60.
