How Customized Cnc Turning Parts Improve Assembly Accuracy

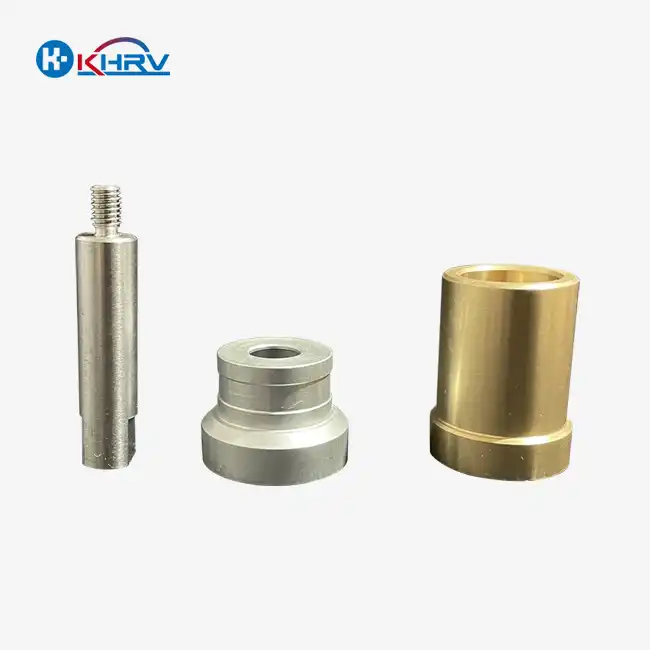

Through precise engineering and custom production processes, customized CNC turning parts greatly improve the accuracy of assembly. Controlled automated cutting makes these parts with limits of ±0.005mm, which directly fixes fit problems that lower the quality of the assembly. Customized turning parts get rid of the differences in size that come with standard parts. This reduces cumulative tolerance stack-up errors while enhancing operational reliability in robotics, medical devices, and high-end industrial equipment.

Understanding Customized CNC Turning Parts and Their Role in Assembly Accuracy

Today's industry needs precise parts that fit together easily into complicated systems. Customized CNC turning parts are specialized ways to machine things that are made to fit your exact needs instead of using off-the-shelf options. This difference is very important when the correctness of the building directly affects how well the product works and how safe it is.

Precision Engineering Through Advanced Materials

The choice of materials is the first step toward making sure that the building is accurate. Medical-grade stainless steel (ASTM A967/A967M-57) is preferred for implantable devices due to its passivation-enhanced corrosion resistance (≥100 hours in 5% NaCl per ASTM B117) and dimensional stability during autoclave cycles. Titanium metal can handle harsh conditions in high-performance uses, and brass is better at being machined for complex shapes. Carbide materials make it possible to make cutting tools and wear-resistant parts that stay within specs for long periods of time. Through its thermal expansion factors, mechanical qualities, and surface finish traits, each material choice has a direct effect on the quality of the assembly. When the materials exactly match the practical needs, thermal changes in dimensions stay reliable, keeping the assembly clearances within the limits set by the designer.

Computer-Controlled Manufacturing Process

Computer numerical control (CNC) is used to remove material from spinning workpieces in a very consistent way. The process gets the same results every time because the tool paths are designed to get rid of human error. Cutting factors like feed rates, spindle speeds, and depth of cut stay the same between production runs. This ensures stability in dimensions, which directly leads to more accurate assembly. The turning process makes cylinder-shaped parts with concentric edges that fit perfectly with other parts of the same type. This concentricity is very important for spinning systems because any deviation causes vibration, wear, and eventually failure. Modern CNC lathes can keep their placement accurate to within micrometers, which lets them make parts that fit together without any adjustments or selective fitting.

Quality Assurance Through Rigorous Inspection

Getting ISO 9001:2015 approval makes sure that quality management is done in a planned way throughout the whole production process. Coordinate measuring tools and precise gauges that are set to traceable standards are used in inspection processes to check the accuracy of the dimensions. Measurements of the surface finish prove the texture needs that affect how well assembled goods seal, lubricate, Customized CNC turning parts and wear. Documentation that comes with each batch of parts makes it possible to track them and make sure they meet engineering standards. This paperwork is very helpful for solving problems with the assembly and for quality checks. It helps with efforts to improve things all the time, which makes the assembly more accurate overall.

Key Benefits of Using Customized CNC Turning Parts for Enhanced Assembly Accuracy

Using precision-engineered moving parts makes it easier to put things together and makes the finished product better. These benefits include more than just accurate measurements; they also include high operating efficiency and long-term dependability.

Elimination of Tolerance Stack-Up Issues

A lot of the time, standard parts have wider errors that add up over many assembly contacts. When five parts each add ±0.02mm of difference, the total assembly tolerance hits ±0.1mm, which might be too big for its purpose. Customized CNC turning parts lower the tolerances of each part to ±0.005mm, which limits the total difference in the assembly to ±0.025mm. This control over margin is especially important in multi-stage processes, where mistakes in dimensions can affect later steps. To work as expected, gear trains, bearing systems, and precision tools need to have tight control over backlash and clearances. With custom-turned parts, assembly plans can be made that keep these important measurements the same.

Material Optimization for Performance Requirements

Different assembly tasks need different qualities from the materials used, which affects both the quality of the manufacturing process and how well the materials work in real life. Biocompatible materials that don't rust and keep their shape during sterilization processes are needed for medical device parts. Robotic parts need materials that can be loaded and unloaded many times without losing their shape or wearing down. Custom material selection lets each unit get the best mechanical properties, temperature properties, and chemical compatibility. As a result of this improvement, there is less chance that the material will change its size in a way that makes the assembly less accurate when it is being used.

Surface Finish Control for Improved Functionality

Customized turning processes can change the roughness of the surface to meet the needs of a certain assembly. Smooth finishes are needed on sealing surfaces to stop leaks, while controlled textures are needed on bearing surfaces to keep the oil in. Being able to define surface finish factors during manufacturing makes sure that the assembly works perfectly without the need for any extra steps. The surface finish has a direct effect on the amount of force needed for assembly, the rate of wear, customized CNC turning parts, and the stability of the dimensions over time. Surface properties that stay the same across production batches keep assembly processes and performance standards the same over the lifecycle of a product.

Customized CNC Turning Parts vs Alternative Manufacturing Methods – What's Best for Assembly Accuracy?

The choice of manufacturing method has a big effect on the quality of the final assembly because of the process's built-in strengths and weaknesses. When you understand these trade-offs, you can make smart purchasing choices that balance quality and cost.

CNC Turning Advantages Over Traditional Machining

In traditional turning processes, accurate measurements depend on the skill of the user and the way the machine is set up by hand. Changes in the process, such as differences in setting, tool wear, and operator skill, cause differences in dimensions that lower the quality of the assembly. These differences are taken away by CNC automation, which uses programmed processes that are the same for all output quantities.In CNC systems, tool wear adjustment changes the cutting settings automatically to keep the accuracy of the dimensions throughout production runs. This feature is necessary to get a uniform assembly fit across large amounts, where manual adjustment is not possible.

Comparison with Casting and Forging Processes

For large-scale production, cast and forged parts are cheaper, but they are less accurate in terms of size than precision-turned parts. Casting errors are usually between ±0.1mm and ±0.5mm, so a lot of work needs to be done to get the parts to the right size for assembly. Forging methods add benefits to grain flow, but the same limits on size . Adding secondary cutting steps to cast or forged blanks can get them to exact sizes, but it costs more and takes longer. When you use direct CNC cutting from solid stock, you skip these middle steps and get better control over the dimensions and quality of the finish on the surface.

Evaluation Against 3D Printing Technologies

Additive manufacturing can make complicated shapes that aren't possible with standard turning, but it can't match the accuracy of CNC for making cylindrical parts yet. The 3D printing layer detail restricts the quality of the finish and the accuracy of the measurements, especially on rotating surfaces that are needed for accurate assembly. The qualities of 3D-printed parts are often different from those of traditional parts. This can change how they expand and contract when heated or cooled,d and how they work when they are put together or used. Instead of heating and cooling processes, which can cause internal stresses, CNC turning keeps the purity of the material by carefully cutting it.

Optimizing Procurement: How to Select the Right Supplier for Customized CNC Turning Parts

The choice of supplier has a direct effect on the accuracy of the assembly through the ability to manufacture, quality processes, and shipping performance. Comprehensive evaluation standards make sure that the quality of each component is always the same and supports the goals of the process.

Manufacturing Capability Assessment

Accuracy and consistency are limited by the advanced features of CNC tools. Modern machine centers that have thermal adjustment keep their accuracy even when the temperature changes during production. Multi-axis features let you finish an entire part in a single setup, which gets rid of setup mistakes that mess up the relationships between dimensions. Transparency in production ability allows for realistic shipping schedules that meet the needs of the assembly line. Suppliers with more than 50 CNC machines and the ability to add up to 80 more machines show that they can grow to meet rising demand without lowering quality standards.

Quality System Verification

ISO certification gives you framework security, but you have to prove it through an audit and sample review. Quality systems need to show that they can handle statistical processes, use measurement systems, and make improvements all the time so that assembly-critical dimensions stay the same. Sample support lets you check the fit before committing to production, which lowers the risk of assembly and speeds up development. Suppliers that offer fast prototyping services make it easier to change and improve designs as a product is being developed.

Technical Collaboration and Support

When a provider offers OEM and ODM customization services, it means they can work with you to improve design and production. Technical knowledge about choosing the right materials, improving processes, customized CNC turning parts, and thinking about how to put things together adds value above and beyond basic production services. When putting together the parts and starting up production, it's important to be able to communicate quickly and get help with fixing problems. Suppliers who offer ideas for process improvement and personalized cutting settings show that they care about the success of the assembly beyond just delivering individual parts.

Practical Applications and Industry Use Cases Demonstrating Assembly Accuracy Improvements

In the real world, uses in a wide range of industries show that customized CNC turning parts can help improve the accuracy of assembly and operating performance.

Automotive and Aerospace Applications

To get the right amount of speed and noise, automotive gearbox parts need to have exact gear tooth engagement and bearing preload. Custom-turned parts allow gear shaft limits that keep the best mesh shape across all production runs. Improving the quality of the assembly cuts down on warranty claims and raises customer happiness by making the product work more consistently. For aerospace uses, parts need to stay accurate even when they are loaded and heated to very high temperatures. Customized choice of materials and precise turning make it possible for bearing races and gear parts that support important flying systems to work reliably and perform well.

Medical Device Manufacturing

Surgical tool systems need parts that stay accurate even after being sterilized many times and give doctors accurate tactile feedback. Custom-turned parts meet the standards for surface finish and stability in size that support both useful performance and legal compliance. Precision moving parts are useful for diagnostic equipment setups because they allow for accurate positioning and measurement. Accuracy of the parts has a direct effect on the accuracy of diagnoses and the repeatability of measurements, both of which affect the level of care for patients.

Robotics and Industrial Automation

Robotic joint assemblies need parts that stay accurate over millions of operating cycles and meet the needs for exact positioning. Custom-made turning parts have consistent sizes and qualities of the materials needed to achieve the required level of placement accuracy and service life. Precision assemblies are important for the quality of the products and the speed of production in industrial robotic equipment. Improving the accuracy of parts cuts down on setup time, makes products more consistent, and extends the life of tools by requiring less wear and upkeep.

Conclusion

Customized CNC turning parts make assembly accuracy much better by using precise production, the best material choice, and quality control systems. When you mix the 30–40% lower cost of advanced manufacturing with the ability to hold a ±0.005mm tolerance, you get a great deal for buying teams that want to improve the performance of assemblies. Quality certifications, technical cooperation, and a track record of on-time deliveries help the car, aircraft, medical device, and robotics industries successfully integrate precision parts into high-demand applications.

FAQ

1. What tolerance levels can be achieved with customized CNC turning parts?

When custom CNC turning is done, key measurements are often within ±0.005mm of the desired accuracy. Advanced machining centers with thermal correction and precise tools can keep these standards across large production runs while also making sure that the sizes are always the same, which is important for meeting strict assembly requirements.

2. How do material choices affect assembly accuracy?

The temperature expansion factors, mechanical qualities, and dimensional stability of the materials used affect how accurately the assembly is put together. Stainless steel is very stable in terms of its dimensions, aluminum alloy behaves reliably at high temperatures, and titanium alloy stays accurate in harsh circumstances. As long as the material is properly matched to the job requirements, the production gaps will stay within the specifications.

3. How long should you wait for custom turning parts to be made?

Typical wait times are 10 to 20 working days, but they can be longer or shorter based on the complexity and amount needed. For urgent assembly needs, rush orders can usually be filled within 48 hours, especially if the same tools and setup settings can be used for different part geometries.

Partner with KHRV for Superior Customized CNC Turning Parts

KHRV offers advanced production skills and full technical support to provide you with precise turning parts that improve the accuracy of your assembly. Our ISO 9001:2015-certified building has more than 50 CNC machines, and it can expand to hold up to 80 units. This means that we can reliably deliver within 10 to 20 working days. As a reliable company that makes Customized CNC turning parts, we offer sample support, OEM and ODM customization services, and technical teamwork that helps your assembly processes run more smoothly. Email our team at service@kaihancnc.com to talk about how our precision parts can help you make your assembly more accurate and improve how well it works.
