Precision Robot Mechanical Parts: 7075 Aluminum Selection and Tiered CNC Machining for Lightweight Automation

Every modern industrial robot relies on tightly engineered structural components to balance two non-negotiable operational needs: consistent positioning accuracy under continuous dynamic load, and lightweight motion efficiency for fast, energy-saving cycling. For mid-market automation builders serving global production lines,Precision Robot Mechanical Parts — custom-machined 7075-T6 aluminum housings, swing arms, brackets and mounting bases — offer a far more practical middle-ground solution than bulky steel frames or overpriced ultra-precision aluminum components. While material grade defines baseline mechanical performance, real-world robot stability ultimately hinges on how precisely manufacturers machine every assembly-critical feature. This article breaks down how targeted 7075 aluminum pairing and tiered tolerance machining on standard 3-axis and 4-axis CNC equipment creates reliable robot parts that hold tight specs through millions of operating cycles, without the inflated costs of full-workpiece ultra-precision processing.

What Are Precision Robot Mechanical Parts, and Why Does Alloy Choice Define Long-Term Reliability?

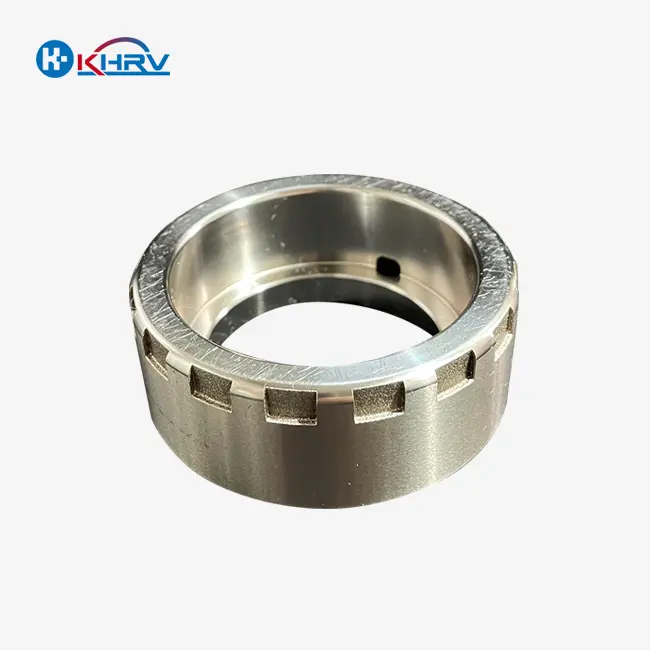

Precision robot mechanical parts form the load-bearing skeleton of all automated motion systems, connecting joints, actuators and end effectors into a cohesive, repeatable mechanism. Unlike static machine frames that endure fixed loads, these robotic components face constant acceleration, deceleration, vibration and torque fluctuation. Even minor deviations in mounting flatness or hole positional accuracy accumulate over time, directly translating to endpoint positioning drift, inconsistent cycling and premature mechanical wear.

This is why material selection is never a generic choice for dynamic robot structures. 7075-T6 aluminum stands apart from common structural alloys thanks to its unmatched balance of high tensile strength and ultra-low density. Delivering steel-comparable tensile strength at 572 MPa while weighing less than 40% of carbon steel, 7075-T6 drastically cuts moving mass for robotic arms. Lighter structural load reduces servo inertia, lowers motor power draw during high-speed cycling, and eases long-term drivetrain fatigue. More importantly, its zinc-magnesium-copper hardened microstructure delivers superior cyclic fatigue resistance — a critical trait for robots running millions of repeat movements annually. Unlike softer 6061 aluminum, 7075-T6 resists micro-deformation and incremental structural shift, preserving factory-calibrated accuracy for years of continuous operation.

Professionally machined 7075 aluminum Precision Robot Mechanical Parts deliver four field-proven performance advantages for industrial automation:

• Stable dimensional accuracy under dynamic load: Core mounting surfaces and bearing interfaces maintain consistent flatness and concentricity through full-range motion and thermal cycling, eliminating cumulative positioning error.
• Superior high-cycle fatigue endurance: Optimized machining stress control and high-strength alloy properties prevent structural degradation, even after millions of rapid acceleration and deceleration cycles.
• Balanced thermal stability: A controlled thermal expansion coefficient matches steel drivetrain and bearing components, keeping assembly clearances consistent across fluctuating operational temperatures.
• Industrial-grade corrosion resistance: Natural aluminum oxidation resistance is reinforced with hard anodizing, defending against humidity, workshop dust and mild chemical exposure in standard factory environments.

When compared to traditional steel robot frames, 7075 aluminum structural parts drastically reduce motion inertia to boost cycle speed while retaining the structural stability required for long-term precision repeatability — all at a far more competitive total cost of ownership.

Real-World Applications & Manufacturing Benefits of Tiered-Precision 7075 Robot Components

At Wuxi Kaihan, we tailor 7075 aluminum machining and tiered tolerance control exclusively for mid-market automation demands. Our production relies entirely on conventional 3-axis and 4-axis CNC machining centers, avoiding high-end ultra-precision equipment overhead. By locking tight tolerances only on functional core features and adopting standard industrial tolerances on non-critical surfaces, we deliver consistent robot component performance with measurable cost savings across two typical industrial scenarios.

1. High-Speed Pick-and-Place Robots | 7075 Aluminum Swing Arm Assemblies

A specialist manufacturer of electronic assembly robots needed upgraded swing arm assemblies to support 150+ cycles per minute high-speed operation. Their original steel arms created excessive moving inertia, limiting acceleration speed and increasing continuous servo power consumption. The client required lighter structural parts without sacrificing bending stiffness or positioning consistency.

We machined the upgraded swing arms from solid 7075-T6 aluminum plate on 4-axis CNC equipment with a strict tiered precision strategy. All functional features that determine robot kinematic accuracy — bearing bore positions and dowel pin holes — were held to ±0.01mm positional accuracy, while core mounting and joint interface surfaces maintained 0.1mm flatness. Non-functional arm profiles, clearance grooves and cosmetic edges were processed to standard industrial tolerances to control machining difficulty and cost. We adopted segmented roughing and finishing with intermediate stress relief to eliminate internal residual stress, ensuring long-term dimensional stability. Hard anodizing was applied to reinforce bearing seat wear resistance.

The 120-piece batch was delivered in 16 working days, fully supported with material mill certificates and full dimensional inspection reports. In field operation, the customer achieved a 40% reduction in arm moving mass, noticeably lower servo current draw during rapid cycling, and zero positioning drift after 12 months of three-shift continuous production. Overall component costs dropped 35% compared to their previous ultra-precision focused supplier.

2. Collaborative Robots | 7075 Aluminum Joint Housings & Sensor Mounting Brackets

A collaborative robot manufacturer focused on light industrial assembly needed lightweight, high-precision 7075-T6 aluminum joint housings and sensor brackets. The core challenge was maintaining precise harmonic drive and sensor alignment while reducing overall robot arm weight to improve payload-to-weight ratio and operational flexibility.

We utilized 3-axis CNC machining to produce these components, strictly controlling bearing concentricity and mounting hole positions at ±0.01mm and critical interface flatness at 0.1mm. Pre-production sample validation confirmed perfect fitting and alignment performance within 5 working days. The full batch of 300 joint housings and 600 mounting brackets was completed and shipped in 15 working days.

After formal installation and calibration, the customer verified fully consistent positioning repeatability compared to their original high-cost components, while cutting procurement expenses by 35%. The lightweight structural upgrade effectively optimized the robot’s dynamic response and load efficiency for flexible workshop automation scenarios.

These two mass-production cases reflect our stable, repeatable manufacturing advantages for mid-market robot component sourcing:

• Tiered precision concentrates ±0.01mm positional accuracy and 0.1mm flatness exclusively on assembly-critical features, with non-essential surfaces following standard industrial tolerances
• 30–40% lower comprehensive procurement costs versus steel structures or fully ultra-precision aluminum alternatives
• Standardized 10–20 working day lead times with pre-production sample verification to eliminate batch-level precision risks
• Full batch documentation including material certification, dimensional inspection data and surface treatment compliance records

Engineering & Sourcing Best Practices for 7075 Aluminum Robot Components

For mechanical design engineers and procurement teams balancing robotic dynamic performance, precision stability and BOM cost control, targeted material specification and practical tolerance design deliver the highest long-term ROI.

Match aluminum grade to actual component load characteristics. Not all robot structural parts require high-strength 7075-T6 alloy. Dynamically loaded moving components including swing arms, joint housings and actuator brackets must use 7075-T6 to sustain fatigue resistance and precision stability over millions of cycles. For static protective panels, cable guides and low-load auxiliary structures, 6061-T6 aluminum provides fully adequate performance at a lower material cost. Graded material matching avoids both performance insufficiency and unnecessary material over-investment.

Adopt tiered tolerance frameworks adapted to standard CNC equipment. Robot precision depends entirely on bearing holes, dowel positions and mating mounting surfaces, not cosmetic outer profiles. Lock ±0.01mm positional tolerance for assembly holes and 0.1mm flatness for core interface surfaces. All clearance pockets, edge contours and non-functional features apply standard industrial tolerances. This practical standard is fully achievable on conventional 3-axis and 4-axis CNC machining centers, eliminating reliance on expensive ultra-precision equipment and greatly optimizing production costs.

Standardize stress relief and surface treatment in production workflows. 7075 aluminum retains minor residual stress after extrusion and machining. A qualified supplier must implement segmented rough-finish processing with intermediate stress relief to stabilize dimensions before final finishing. Hard anodizing serves as the standard surface treatment for robot components, improving interface wear resistance and long-term oxidation protection in industrial environments. Documented process control ensures batch consistency across mass production.

Validate performance via pre-production sampling. Prototyping verification confirms alloy compatibility, dimensional stability and assembly fit before full batch production. This step rules out tolerance mismatch, structural interference and performance defects, avoiding costly rework and delivery delays for formal orders.

Conclusion

High-performance industrial robots require structural components that balance rigid precision, lightweight motion efficiency and long-cycle fatigue resistance.Precision Robot Mechanical Parts crafted from application-matched 7075-T6 and 6061-T6 aluminum solve the core pain points of heavy steel frames and over-engineered ultra-precision components for mid-market automation manufacturers. Wuxi Kaihan’s mature manufacturing system — based on standard 3-axis and 4-axis CNC machining centers, paired with scientific alloy grading and tiered tolerance control — locks ±0.01mm positional accuracy and 0.1mm flatness on all functional critical surfaces while controlling costs via reasonable industrial tolerances on non-essential areas. This approach delivers stable robot positioning repeatability, lighter moving mass and 30–40% lower total procurement costs compared with traditional alternatives. For engineering and procurement teams aiming to optimize robotic system performance and streamline manufacturing expenses, standardized, tiered-precision aluminum robot components represent a reliable, cost-effective long-term sourcing solution.

FAQ

1. What are Precision Robot Mechanical Parts, and what role do they play in automation systems? Precision robot mechanical parts are custom CNC-machined aluminum structural components that form the load-bearing framework of industrial and collaborative robots, including swing arms, joint housings, connecting brackets and mounting bases. Their dimensional accuracy and structural stability directly determine robot positioning repeatability, dynamic response speed and long-term operational durability under cyclic vibration and load changes.

2. Why choose 7075-T6 aluminum over 6061-T6 for robot dynamic structural parts? 7075-T6 aluminum features double the tensile strength and far superior fatigue resistance of 6061-T6, making it ideal for high-frequency moving robot components that require sustained precision stability over millions of cycles. 6061-T6 remains a cost-effective choice for static, low-load auxiliary parts, enabling manufacturers to balance performance and material cost through graded alloy selection.

3. How does tiered precision machining reduce component costs without sacrificing robot accuracy? Tiered precision machining focuses tight ±0.01mm positional tolerance and 0.1mm flatness exclusively on core assembly surfaces that affect robot precision. All non-functional cosmetic and clearance features adopt standard industrial tolerances. This method avoids the excessive cost of full-workpiece ultra-precision grinding, cutting manufacturing expenses by 30–40% while fully preserving robotic operational accuracy.

4. What surface treatments are used for aluminum robot mechanical parts? Hard anodizing is the standard treatment for 7075 and 6061 aluminum robot components, improving surface hardness, interface wear resistance and industrial environmental corrosion resistance. Fine sandblasting and customized anti-corrosion coatings are available for projects with enhanced appearance or environmental adaptability requirements, with full process compliance documentation provided per batch.

Partner with KHRV for Reliable Precision Robot Mechanical Parts

If you’re looking to optimize your robot design with lighter, more stable, cost-effective aluminum structural components, Wuxi Kaihan Technology Co., Ltd. provides application-tailored Precision Robot Mechanical Parts for global mid-range automation and robotics manufacturers. Our ISO 9001:2015-certified workshop is equipped with conventional 3-axis and 4-axis CNC machining centers, executing mature tiered precision machining, scientific aluminum alloy selection, standardized stress relief and hard anodizing processes.

We support full OEM customization, maintain stable 10–20 working day lead times, and deliver 30–40% total cost savings versus steel or fully ultra-precision robot components. Every batch comes with complete material certification, dimensional inspection reports and process control records. Reach out to our engineering team at service@kaihancnc.com to submit your drawings, discuss project specifications, and get a tailored competitive quote.

References

1. Zhang, H. T., & Wang, Y. L. (2023). Performance Analysis of 7075 Aluminum Alloy for Industrial Robot Structural Components. Journal of Industrial Automation Machinery, 46(9), 158–172.

2. Li, S. J., & Chen, B. H. (2022). Tiered Precision CNC Machining Technology for Robot Lightweight Structural Parts. Precision Manufacturing & Automation, 32(10), 201–215.

3. Wu, D. F., & Thompson, K. R. (2023). Fatigue Resistance and Dimensional Stability of High-Strength Aluminum Robot Components. Robotics Component Engineering, 88(4), 96–110.

4. Zhao, L. X., & Liu, P. T. (2022). Surface Treatment Optimization for Lightweight Robot Structural Aluminum Parts. Industrial Surface Engineering, 44(7), 132–145.

5. Jiang, C. Y., & Davis, M. H. (2023). Cost-Benefit Analysis of Aluminum-Steel Material Matching for Robot Frame Manufacturing. Industrial Equipment Procurement Review, 31(6), 182–196.

6. Yang, Z. K., & Green, S. T. (2022). Quality Control System for Custom CNC Robot Mechanical Components.Manufacturing Quality Standard Research, 35(3), 78–92.
