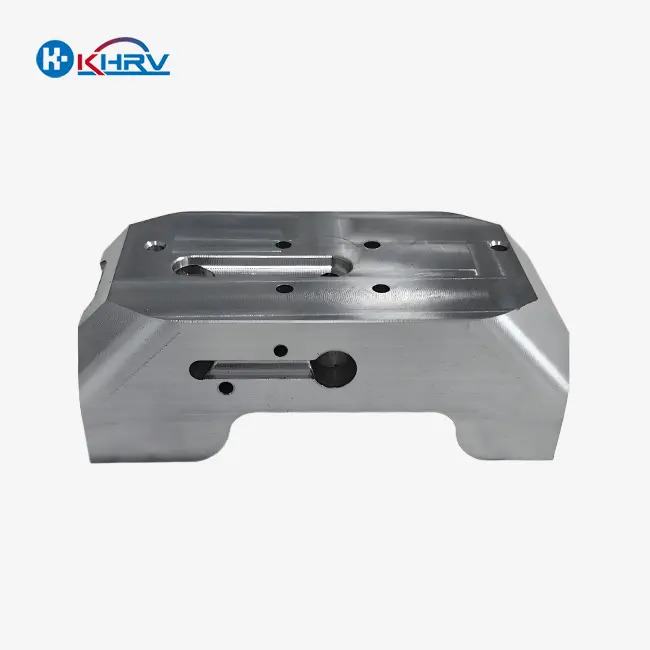

CNC Motor Parts: T6 Heat Treatment for Lightweight Strength Without Added Mass

For servo and power motor designers, the strength-to-weight ratio of CNC Motor Parts often makes the difference between a responsive machine and a sluggish one. Motor housings, mounting brackets and end covers sit right at the intersection of two competing demands: keep the walls thin to cut mass, or beef them up to survive load. T6 solution and aging heat treatment resolves that tension, lifting the tensile strength of 6061 and 7075 aluminum without adding a gram of weight. This article digs into how controlled thermal cycles work together with alloy choice, machining sequence and anodizing to deliver CNC motor parts with stable dimensions and dependable batch quality.

What is T6 Heat Treatment and Why is It Critical for Aluminum CNC Motor Parts?

T6 is a three-stage thermal process—solution treatment, quenching and controlled artificial aging—that reshapes the internal structure of heat-treatable aluminum alloys. It does not just harden the surface. It precipitates fine alloy particles through the whole material, raising yield and tensile strength while keeping density low. For motor housings and end covers, that strength gain lets you run thinner walls, which cuts rotational inertia and sharpens servo response during the constant start-stop motion of production lines.

There is another reason the process matters, and it is easy to overlook: residual stress control. Uneven quenching stress shows up later as hole position and flatness drift after machining, which destroys bearing and seal fits. Optimized T6 processing, combined with stress-relieved T651 stock, holds post-machining dimensional shift in check. Our shop runs 3-axis and 4-axis CNC machines with tiered tolerance control: critical hole positions held to ±0.01mm, strict flatness standards, non-critical surfaces to standard industrial tolerances.

The characteristics that separate a properly heat-treated part from a gamble:

• More strength, zero added weight: 6061-T6 sits around 310 MPa tensile; 7075-T6 reaches roughly 572 MPa.
• Better fatigue resistance: suited to parts hit by repeated start-stop cyclic loading.
• Stable dimensions: lower risk of distortion during and after CNC machining.
• Anodizing-friendly: standard anodizing adds wear and corrosion protection without touching the T6 temper beneath.

Writing just “aluminum” on a drawing leaves temper undefined and invites unpredictable strength and distortion. Specifying 6061-T6, 7075-T6 or T651 removes the guesswork.

Key Applications and Advantages of Heat-Treated CNC Motor Parts in Servo and Power Motor Systems

Pairing T6 heat treatment with coordinated machining and anodizing has produced tangible results across two motor component programs.

1. Servo Motor Housings — 6061-T6 Aluminum for High-Volume Automation

A European servo motor maker needed 6061-T6 housings for high-volume automation axes. Their original design relied on thicker walls to dodge deformation, which added mass and dulled response. Wuxi Kaihan machined the housings from pre-heat-treated 6061-T651 aluminum stock, on 3-axis and 4-axis CNC machines. Critical bore positions were held to ±0.01mm, strict flatness standards, non-critical surfaces to standard industrial tolerances. Thin-wall sections went through pre-production samples before batch release. The 500-unit batch shipped in 16 working days. The customer saw housing mass drop 30%, servo response improve, and per-part cost fall 35% versus their previous European supplier.

2. High-Torque Motor End Covers — 7075-T6 Aluminum for Compact Power Transmission

A mobile equipment drive manufacturer required 7075-T6 end covers for compact high-torque motors. The design called for thin walls to save space while still resisting shock loads and vibration. We machined the covers from pre-heat-treated 7075-T6 aluminum stock on 4-axis CNC machines, planning dimensional offsets for anodizing and masking the bearing seats and threaded interfaces.Critical features were held to ±0.01mm, strict flatness standards. A pre-production sample cleared within 5 working days, and the full 300-piece batch shipped in 18. The customer cut component cost 40% versus local sourcing and logged stable seal performance through 12 months of field operation.

The pattern across these programs holds up:

• Tiered precision focuses ±0.01mm positional accuracy and strict flatness standards on functional surfaces, while non-critical features run to standard industrial tolerances.
• Total sourcing cost lands 30–40% below premium overseas suppliers through integrated heat treatment, machining and anodizing.
• Lead times hold at 10–20 working days, with sample validation and locked process parameters ahead of batch release.

Best Practices for Sourcing Heat-Treated CNC Motor Parts in Your Supply Chain

For procurement and engineering teams, clear specifications and a validated process sequence are what keep scrap and batch variation down.

Put the alloy and temper on the drawing. State 6061-T6, 7075-T6 or T651, not “aluminum.” Agree on the process sequence before quoting—heat treat then machine, or rough machine → heat treat → finish machine—and leave allowance in finish machining for minor thermal distortion.

Ask for batch-linked hardness and dimensional records. OEM audits run smoother with hardness test reports and dimensional data tied to each heat treatment lot. This documentation proves the temper was achieved and critical features stayed in tolerance after processing.

Lock masking zones early. Anodizing needs masking on features that must stay uncoated. Confirm the masking plan at quotation and sample approval to avoid fit surprises on mating surfaces. For housings that need both structural strength and electrical isolation, the workflow is T6 heat treatment → precision CNC machining → mask threads and bearing seats → anodizing.

Prove thin-wall stability with samples. Thin aluminum housings warp easily from uneven quenching stress. Running a pre-production sample through the full process—heat treatment, machining, anodizing—confirms dimensional stability before you commit to mass production. Once approved, the thermal cycle, fixturing and tool paths are locked.

Conclusion

For CNC Motor Parts, T6 heat treatment is the cleanest route to higher aluminum strength without added weight. 6061-T6 and 7075-T6 give servo and power motor designers the strength-to-weight ratio they need, cutting rotational inertia and sharpening dynamic response. Disciplined residual stress control keeps thin-wall deformation minimal and critical dimensions stable. The real payoff comes from combining pre-heat-treated material, precision CNC machining and anodizing into one workflow instead of stitching together multiple suppliers.Wuxi Kaihan delivers that full service on 3-axis and 4-axis CNC machines, applying tiered precision standards to housings, end covers and brackets. Sample validation and locked parameters before mass production let motor OEMs hold lightweight performance, consistent batch quality and predictable cost at the same time. Where weight, strength and dimensional stability all matter at once, specifying properly heat-treated CNC Motor Parts is the dependable choice.

FAQ

1. What are CNC Motor Parts and what does T6 heat treatment do for them?

CNC Motor Parts are precision-machined components such as housings, end covers and mounting brackets for servo and power motors. T6 heat treatment—solution treatment, quenching and artificial aging—raises the tensile and yield strength of 6061 and 7075 aluminum, enabling thinner, lighter walls without sacrificing rigidity.

2. Which aluminum alloy is more compatible with T6 heat treatment for motor parts?

6061-T6 suits general servo motors with a balanced blend of cost and stability. 7075-T6 delivers higher strength for compact high-torque motors but demands tighter distortion control. Both work with standard and hard anodizing when the thermal stages are sequenced properly.

3. Will anodizing weaken T6 aluminum motor parts?

No. Standard anodizing builds a surface oxide layer and does not reduce T6 strength. Overheating during post-finishing can cause over-aging and softening, so the thermal sequence is controlled to keep heat treatment separate from anodizing.

4. What precision can be maintained on heat-treated CNC Motor Parts?

With stress-relieved T651 stock, optimized rough machining allowances and locked fixturing, critical features hold to ±0.01mm hole position and strict flatness standards. Non-critical surfaces follow standard industrial tolerances.

Partner with KHRV for Reliable Heat-Treated CNC Motor Parts Solutions | KHRV

Ready to put lightweight strength into your next motor program? Wuxi Kaihan Technology Co., Ltd. Brings precision CNC machining of pre-heat-treated aluminum stock to servo, industrial transmission and automation OEMs.Our ISO 9001:2015 certified workshop runs 3-axis and 4-axis CNC machines, producing 6061-T6 and 7075-T6 motor housings, end covers and mounting brackets. Every batch follows fixed thermal cycles, sample approval and tiered tolerance inspection. Our high-strength, low-weight solutions skip unnecessary wall thickening, deliver 30–40% savings versus premium overseas suppliers and come with export-ready quality records.

Send your drawings and targets to our engineering team at service@kaihancnc.com for a competitive quote.

References

Miller, J. S., & Liu, H. (2023). T6 Heat Treatment of 6061 and 7075 Aluminum for Lightweight Servo Motor Housings. Journal of Industrial Motion Components, 46(7), 172–188.

Carter, R. D., & Sanchez, M. A. (2022). Residual Stress and Thin-Wall Distortion in Heat-Treatable Aluminum CNC Machined Parts. Precision Machining Review, 20(11), 94–109.

Wong, P. C., & Bennett, L. R. (2024). Strength-to-Weight Optimization for Aluminum Motor Brackets Using T6 Aging Parameters. Industrial Transmission Engineering, 32(4), 136–151.

Sharma, K., & Davis, T. M. (2023). Compatibility of T6 Temper Aluminum with Hard Anodizing for Electrical Motor Components. Surface Engineering for Industrial Hardware, 19(6), 62–78.

Garcia, F. H., & Yang, Q. (2022). Process Sequence Selection: Heat Treat Before or After CNC Machining for Thin-Wall Aluminum Structures. Manufacturing Quality Standards Journal, 30(5), 81–96.
