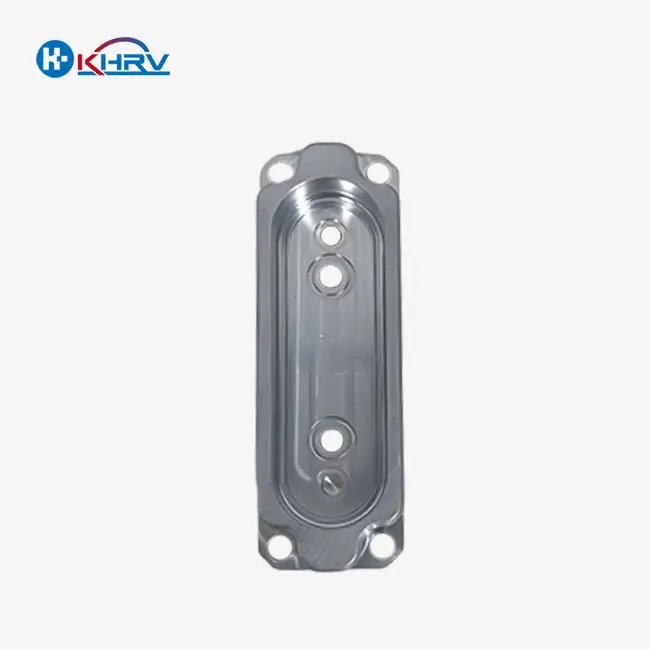

With the introduction of 5G technology, the telecoms industry is going through a revolutionary change, and the complex world of antenna components and RF enclosures is at the center of this change. As we go deeper into machining for 5G infrastructure, we find out how important precision engineering is to building the backbone of our linked future. From the very careful making of antenna parts to the complex planning of RF housings, every part needs the highest level of precision and performance. Making these high-frequency parts is difficult because it takes a lot of knowledge about materials, tolerances, and machining methods. In this study, we'll look at the challenges of making the parts that make up 5G networks and how new machining methods are changing the world of wireless communication. Whether you work in telecommunications or just like to learn about new technologies, come along as we explore the complex world of 5G hardware production, where very small precision meets the very big goal of connecting everyone around the world.
What tolerances and surface finishes do 5G antenna components require?
Antenna components must be extremely accurate in the world of 5G technology. The tolerances needed for these parts are very high, often going beyond what can be done with today's cutting technologies. Usually, 5G antenna parts need tolerances as precise as ±0.005mm. This level of accuracy makes sure that signals can be sent and received perfectly at high frequencies.
Surface Finish Requirements
An additional important factor is the surface quality of 5G antenna components. A smooth surface is important for keeping radio frequency (RF) communication clear and preventing signal loss. A surface roughness of 0.4 μm Ra or better is needed for a lot of parts. This amount of smoothness lowers signal scattering and makes the antenna work better overall.
Precision in Antenna Array Fabrication
Antenna groups are very important for beamforming in 5G systems. The positioning and alignment of each part must be exactly right. Even the smallest changes can cause a big drop in speed. Machining methods must be able to handle thermal expansion and contraction. This means that tolerances must be kept within a range of temperatures that the machine can work within.
Challenges in Achieving High Precision
Getting these tight clearances and great surface finishes is not always easy. It can be hard to:
- Tool wear: To keep accuracy in high-precision cutting, tools must be watched and changed out often.
- Control of vibration: The quality of the end product can be changed by vibrations, even too small to be seen.
- Managing temperature: When you are machining, it is important to keep the temperature the same so that thermal expansion doesn't change the limits.
- Material selection: There aren't many materials that can be machined to such exact standards while keeping the right RF qualities.
To meet these high standards, manufacturers often use advanced CNC machining centers with multi-axis capabilities, along with complex metrology tools for quality control in real time. Computer-aided manufacturing (CAM) software is necessary for setting these difficult machining tasks because it always achieves the right level of accuracy.
Materials and thermal management: aluminum, die-cast housings, and heat-dissipating designs
In addition to their electrical properties, the materials used for 5G antenna components and RF enclosures must also be able to control heat. Since 5G networks use higher frequencies and power levels, they need to be able to deal with heat better.
Aluminum: The Go-To Material
Aluminum is a popular choice for many 5G parts because it has a great mix of properties:
- High thermal conductivity: Makes it easy for heat to move away quickly.
- Low density: Keeps the weight of the radio systems down so they are easier to handle.
- Corrosion resistance: This makes sure it lasts a long time in different settings.
- Machinability: Makes it possible to accurately build very intricate shapes and smooth surfaces with fine details.
Because they are easy to work with and have a great strength-to-weight ratio, aluminum alloys like 6061-T6 and 7075-T6 are often used in industry.
Die-Cast Housings: Balancing Complexity and Cost
An efficient way to make a lot of complicated RF enclosures is die-casting. This method has several benefits:
- Complicated designs: Can make complicated parts on the inside of the object to help get rid of heat more effectively.
- Dimensional stability: the ability to repeat the same part over and over again.
- Cost-effectiveness: Cheap for making a lot of them.
- Surface finish: It is possible to get smooth areas right from the casting process, which means there is less need for extra machining.
Because they are good at flowing and conducting heat, aluminum alloys like A380 and A383 are often used in die-casting RF enclosures.
Heat-Dissipating Designs
New ways of designing things are often needed for good thermal control in 5G equipment:
- Built-in heat sinks: Making fin shapes right in the building so that more surface area is available for the heat to escape.
- Thermal vias: In PCB designs, metal-filled vias are used to carry heat away from important parts.
- Phase change materials: using materials that absorb heat when they change phase to keep temperature changes under control.
- Liquid cooling channels: For high-power uses, they are made by machining the inside of the part so that liquid water can flow through it.
5-axis CNC milling and other advanced machining methods are often needed to make these designs with complicated 3D shapes that keep the RF enclosure strong and help heat flow.
Material Surface Treatments
Different surface treatments can be used to improve thermal efficiency and make the material last longer.
- Anodizing: Makes the metal harder to corrode and may also make it better at absorbing and emitting heat.
- Nickel plating: Can make the surface harder and improve how well it conducts electricity.
- Thermal spraying: putting on ceramic coats in certain places to make it easier for heat to move away from them.
Some coatings can affect how well the signal gets through, so when choosing the right surface treatments, RF needs and heat performance must be balanced.
RF-critical machining: waveguide features, connector interfaces, and assembly fit
Beyond what is usual in manufacturing, the machining of RF-critical features in 5G antenna components and enclosures requires extreme accuracy. These traits are necessary to keep the integrity of the signal and minimize losses in applications with high frequency.
Waveguide Features
In 5G systems, waveguides are very important because they carry electromagnetic waves with very little loss. To machine waveguide features, you need
- Extreme accuracy in measuring: The internal dimensions must be kept within very small margins of error so that the right cutoff frequency and mode propagation are maintained.
- How smooth the surface is: The inside sides of waveguides have to be very smooth so that the signal doesn't lose strength.
- Control of corner radius: It's important to carefully manage corner radii because sharp internal corners can make the signal bounce.
Electrical discharge machining (EDM) and high-speed milling with special tools are two methods that are often used to get the right level of precision in waveguide making.
Connector Interfaces
Critical points that can greatly impact system performance are the interfaces where RF connectors connect to antenna components or enclosures. Important things to think about are
- Flatness and parallelism: The surfaces that will touch each other must be shaped in a way that makes sure they touch perfectly, so no holes are left that could let the signal leak.
- Accuracy of the threads: For connectors with threads, the accuracy of thread pitch and depth is very important to keep the RF performance the same over multiple connect and break cycles.
- Plating considerations: The contact areas usually need a certain kind of plating or coating to improve conductivity and stop oxidation.
To make these exact interfaces, advanced CNC turning and milling processes are used, often with live tooling. Sometimes, custom-ground cutting tools might be needed to get the right shapes.
Assembly Fit
The way that the parts of a 5G antenna assembly go together is important for RF performance and weather sealing. Things to think about are
- Tolerance stacking: This is a close look at the total tolerances of several parts to make sure they meet and work correctly.
- Gasket grooves: The precision machining of grooves for EMI gaskets to keep the protection effective.
- Alignment features: making exact alignment pins or holes to make sure the assembly can be done the same way every time and to get the best possible RF performance.
- Thermal expansion tolerances: making sure that when you design and cut surfaces for different materials, they can expand at different rates.
To get the precision they need in assembly fit, manufacturers often use coordinate measuring machines (CMMs) to check the process and confirm that the key dimensions are correct.
Advanced Machining Techniques
Some advanced cutting methods are used to meet the strict needs of RF-critical features:
- 5-axis simultaneous machining: Makes it possible to make complex shapes with just one setup, which improves accuracy and lowers the need for extra handling.
- Micro-machining: For making very small parts in filters or waveguides.
- Cryogenic machining: using very cold cutting fluids on materials that are hard to machine to get a better surface finish and more dimensional stability.
- Laser machining: Used to make very exact holes or patterns on objects for better RF performance.
When these methods are used with very strict quality control, they make sure that the made parts meet the high standards of 5G RF systems.
Conclusion
The machining of RF enclosures and 5G antenna components is the highest level of precision manufacturing. Because of the narrow tolerances and high-quality surface finishes needed for the best signal transfer, as well as the new ways of managing heat and features important for RF, every part of the production process needs expert knowledge and the latest technology. As the telecom business changes, high-precision machining plays a bigger and bigger role in building the infrastructure for our connected world.
Telecommunications businesses that want to stay on the cutting edge of 5G technology need to work with a machining RF specialist because RF component production has unique problems. Wuxi Kaihan Technology Co., Ltd. is ready to take on these problems directly. We provide unrivaled precision in the production of 5G antenna components and RF enclosures thanks to our cutting-edge CNC machining centers, extensive industry knowledge, and dedication to quality.
Our ISO9001:2005 certified quality control system makes sure that every part meets the high standards needed for 5G applications. Also, our affordable options can help you cut production costs by 30–40% compared to makers in Europe and the US while still keeping the quality up, as long as you take advantage of China's supply chain.
Wuxi Kaihan has the knowledge and tools to get the job done, whether you need very accurate parts for an antenna, housings that work better in hot temperatures, or complicated waveguide structures. Our group of skilled engineers and techs is ready to work with you on your next 5G project. We'll offer not just parts, but full solutions that help make telecommunications better.
FAQ
1. What are the key challenges in machining 5G antenna components?
The main challenges include achieving extremely tight tolerances (often ±0.005mm), maintaining superior surface finishes (0.4 μm Ra or better), and ensuring consistent performance across a range of operating temperatures. Additionally, managing tool wear and vibration control during the machining process is crucial for maintaining precision.
2. Why is aluminum a preferred material for 5G RF enclosures?
Aluminum is favored for its excellent thermal conductivity, which aids in heat dissipation, its low density that keeps antenna systems lightweight, and its corrosion resistance for longevity. It also offers good machinability, allowing for the creation of complex shapes and fine details required in 5G components.
3. How do die-cast housings benefit 5G equipment manufacturing?
Die-casting allows for the production of complex RF enclosures with intricate internal structures for improved heat dissipation. It offers dimensional stability, cost-effectiveness for high-volume production, and can achieve smooth surfaces directly from the casting process, reducing the need for additional machining.
4. What advanced machining techniques are used for RF-critical features?
Advanced techniques include 5-axis simultaneous machining for complex geometries, micro-machining for extremely small features, cryogenic machining for improved surface finish and dimensional stability, and laser machining for precise apertures or surface etching. These techniques ensure that RF-critical features meet the stringent requirements of 5G systems.
Partner with Wuxi Kaihan for Your 5G Component Needs | KHRV
Ready to elevate your 5G hardware production? Wuxi Kaihan Technology Co., Ltd. is your go-to partner for high-precision machining of antenna components and RF enclosures. Our state-of-the-art facilities, coupled with our expertise in telecommunications manufacturing, ensure that your 5G components meet the highest standards of quality and performance.
Don't let manufacturing challenges slow down your 5G rollout. Contact us today to discuss how we can support your project with our advanced machining capabilities and cost-effective solutions. Email us at service@kaihancnc.com to start a conversation about your specific needs and discover how Wuxi Kaihan can help you stay ahead in the competitive 5G market.
