Quality Control Methods for Complex Precision Machined Parts

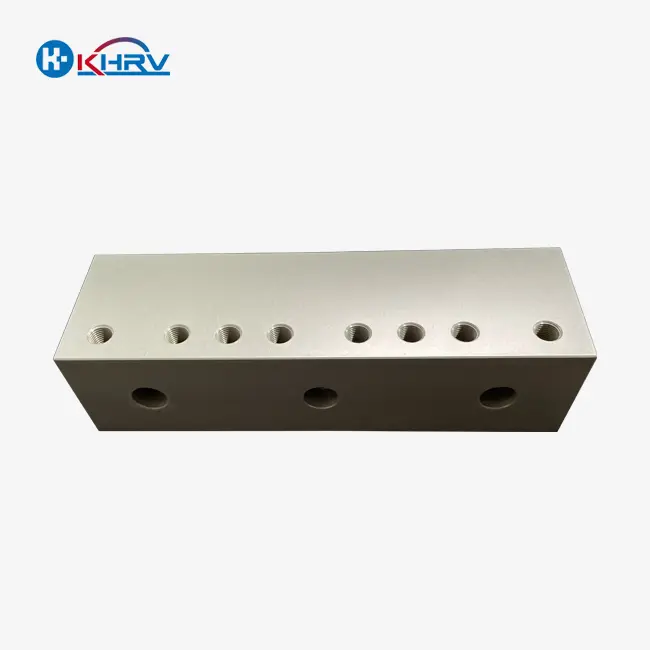

When it comes to complicated precision-machined parts, quality control is very important. Because these parts are used in critical applications in fields like aerospace, medical devices, and robotics, they need to be extremely accurate and reliable. Quality control methods that work make sure that every part meets strict requirements, which improves their performance and durability in the situations they're meant for. The field of quality control for complex precision-machined parts is both complicated and important. It includes everything from advanced measuring methods to strict inspection routines. This piece goes into detail about the many ways that the highest standards are kept in precision manufacturing. It looks at how new technologies and tried-and-true methods work together to produce quality that is unmatched.

Advanced Measurement Techniques for Precision Parts

Advanced measurement methods are very important for making sure that the quality of complex precision-machined parts. These advanced techniques go beyond simple callipers and micrometres. They leverage cutting-edge technology to achieve unprecedented levels of accuracy.

Coordinate Measuring Machines (CMMs)

Coordinate Measuring Machines, or CMMs, are a huge step forward in measuring accuracy. A probe on these machines measures different places on the surface of a part, making a three-dimensional map of its shape. CMMs are essential for checking the sizes of complicated parts because they can find differences as small as a few microns.

The versatility of CMMs allows for the measurement of intricate features such as:

Surfaces with no edges
Tight limits in places that are hard to get to
Complex shapes that are common in aerospace and medical gadget parts

Optical measurement devices use advanced imaging technology to check machined parts without touching them. These methods are especially useful for measuring parts that are fragile or easily deformed, since touching them could change the results.

Optical Measurement Systems

Optical measurement systems leverage advanced imaging technology to perform non-contact inspections of machined parts. These systems are particularly valuable for measuring delicate or easily deformable components where physical contact might alter the results.

Key advantages of optical measurement systems include:

Quick data collection that lets 100% checking happen in high-volume production
Being able to measure surfaces with complicated shapes and textures
Adding CAD models lets you compare and analyse deviations directly.

Laser scanning has changed the way that complicated precision-machined parts are measured. Laser light is used in this technology to collect millions of data points, which are then used to make very detailed 3D models of things that can be inspected.

Laser Scanning Technology

Laser scanning has revolutionized the measurement of complex precision-machined parts. This technology uses laser light to capture millions of data points, creating highly detailed 3D models of parts for inspection.

The benefits of laser scanning in quality control include:

Ability to measure parts with complex geometries quickly and accurately
Generation of comprehensive point clouds for comparison against CAD models
Identification of subtle deformations or wear patterns over time

Laser scanning is particularly useful in industries like aerospace and automotive, where components often have intricate shapes and critical tolerances.

Statistical Process Control in Precision Manufacturing

Statistical Process Control (SPC) is a powerful methodology used to monitor and control manufacturing processes, ensuring consistent quality in the production of complex precision-machined parts. By applying statistical methods to production data, manufacturers can identify trends, reduce variability, and maintain tight tolerances essential for high-precision components.

Control Charts and Their Implementation

Control charts are fundamental tools in SPC, providing a visual representation of process stability and capability. For precision machining, these charts typically track critical dimensions or key quality characteristics over time.

Implementing control charts involves:

Selecting appropriate chart types (e.g., X-bar and R charts for continuous data)
Establishing control limits based on process capability studies
Regular sampling and measurement of produced parts
Plotting data points and analyzing trends

By monitoring these charts, operators can quickly identify when a process is drifting out of specification and take corrective action before non-conforming parts are produced.

Process Capability Analysis

It is crucial to conduct a process capability analysis to determine whether a manufacturing process can consistently produce parts within specified tolerances. For this study, you have to figure out indices like Cp and Cpk, which show how the process spread compares to the specification limits.

Key aspects of process capability analysis include:

Getting a taste of parts that are typical
Finding process statistics and measuring important factors
Seeing how the natural process changes compared to the limits
Looking for ways to make the process better
For complex precision-machined parts, keeping the Cp and Cpk numbers high is necessary to make sure that the parts always meet or go beyond what the customer wants.

When SPC tools find a problem with the quality or the way the process is going, root cause analysis is used to figure out what is really causing the problem. This methodical technique helps keep things from happening again and makes the manufacturing process better all the time.

Root Cause Analysis and Corrective Actions

When SPC tools identify a process deviation or quality issue, root cause analysis is employed to determine the underlying factors contributing to the problem. This systematic approach helps prevent recurrence and drives continuous improvement in the manufacturing process.

Steps in root cause analysis for precision machining include:

Getting information about the unique quality problem
Finding possible reasons by using tools like Ishikawa diagrams or 5-Whys analysis
Targeted experiments or data analysis can help find the root cause.
Taking corrective steps and making sure they work

By rigorously applying these techniques, manufacturers can maintain the high standards required for complex precision-machined parts across various industries.

Advanced Inspection Protocols for High-Precision Components

Ensuring the quality of complex precision-machined parts requires sophisticated inspection protocols that go beyond basic dimensional checks. These advanced methods combine cutting-edge technology with meticulous procedures to verify every aspect of a part's conformance to specifications.

Non-Destructive Testing (NDT) Techniques

Non-destructive testing allows for thorough inspection of parts without compromising their integrity. This is particularly crucial for high-value, complex components where destructive testing is not feasible.

Common NDT methods used in precision machining include:

Ultrasonic Testing: Uses high-frequency sound waves to detect internal flaws or inconsistencies in material structure.
Magnetic Particle Inspection: Ideal for ferromagnetic materials, this method can reveal surface and near-surface defects.
Eddy Current Testing: Particularly useful for detecting surface cracks and material property variations in conductive materials.
X-ray and Computed Tomography (CT) Scanning: Provides detailed internal views of parts, crucial for inspecting complex internal geometries.

These techniques enable manufacturers to identify defects that might be invisible to the naked eye or undetectable through conventional measurement methods.

Surface Finish Analysis

For many complex precision-machined parts, surface finish is a critical quality characteristic. Advanced surface analysis techniques provide quantitative data on surface roughness, waviness, and other parameters.

Key aspects of surface finish analysis include:

Profilometry: Using a stylus or optical methods to measure surface topography
3D Surface Mapping: Creating detailed maps of surface features for comprehensive analysis
Spectral Analysis: Examining the frequency components of surface profiles to identify periodic patterns or defects

These methods ensure that parts meet not only dimensional specifications but also surface quality requirements crucial for their functional performance.

Automated Inspection Systems

Automated inspection systems have changed the way quality control is done for making a lot of fine parts. These systems blend several types of inspection technology into a single, quick process.

Features of advanced automated inspection systems include:

Putting together laser scanners, vision tools, and tactile probes
Data processing in real time and comparisons with CAD models
Putting parts into groups automatically based on quality standards
Making detailed inspection records to help with tracking

Automation helps makers get 100% inspection rates while keeping throughput high, which is very important for fields that need zero defects.

Material Composition Verification

Making sure the right mix of materials is important for complex precision-machined parts, especially in fields like aircraft and medical devices, where the properties of the materials directly affect how well they work and how safe they are.

Advanced material verification methods include:

X-ray Fluorescence (XRF) Spectroscopy: It quickly and without damage checks the elements in metals and alloys.
The optical emission spectroscopy (OES) method provides an exact analysis of chemical composition and is especially useful for checking the quality of certain alloy grades.

With these methods, the materials used in production are sure to meet all the exact requirements needed for the part's intended use. By using these advanced inspection procedures, companies can make sure that every intricately machined part meets the highest quality and dependability standards. This all-around approach to quality control is necessary in fields where part failure is not a choice and where accuracy is key to safety and performance.

Conclusion

Controlling the quality of complicated, precisely machined Complex Precision Machined Parts is a big job that needs cutting edge technology, careful statistical analysis, and close attention to every detail. Every step of the quality control process is very important for making sure that these important parts meet the very high standards needed in industries like aircraft, medical devices, and high-end manufacturing. This includes measuring them in complicated ways and inspecting them carefully. With better technology, there will be better tools and ways to check the quality. In order to make complicated machined parts that are more accurate and reliable, manufacturers who keep up with these changes will be in the best position. In the future, quality control in this field will be even more accurate, efficient, and informative thanks to progress in AI, machine learning, and high-tech monitors. That's not all that quality control is for in precision cutting. The goal is to stop mistakes from happening in the first place as well. For more consistent and reliable precision-machined parts than ever before, manufacturers use cutting-edge quality control methods from the planning stage all the way through to the final review. Companies and businesses that need these parts should work with a manufacturer that uses the most up-to-date ways to check the quality of their products. Not just meeting the requirements isn't enough; these parts are very important for making sure the finished things are safe, work well, and last a long time.

FAQ

1. What are the most common quality control challenges for complex precision-machined parts?

The most common challenges include maintaining tight tolerances across multiple dimensions, ensuring consistent surface finishes, verifying material properties, and detecting micro-level defects. These challenges are amplified when dealing with intricate geometries or when working with advanced materials that require specialized handling and processing.

2. How does automated inspection compare to manual inspection for precision parts?

Automated inspection offers several advantages over manual inspection for precision parts, including higher throughput, increased consistency, and the ability to capture and analyze large amounts of data. However, manual inspection can still be valuable for certain complex parts or when human judgment is needed to interpret subtle quality characteristics. Many manufacturers use a combination of both methods to achieve optimal results.

3. What role does traceability play in quality control for precision-machined parts?

Traceability is crucial in quality control for precision-machined parts, especially in industries with strict regulatory requirements. It involves maintaining detailed records of materials, processes, measurements, and inspections for each part. This information is vital for troubleshooting quality issues, conducting recalls if necessary, and demonstrating compliance with industry standards and regulations.

4. How are emerging technologies like AI and machine learning impacting quality control in precision machining?

AI and machine learning are revolutionizing quality control in precision machining by enabling predictive maintenance, real-time process optimization, and more sophisticated defect detection. These technologies can analyze vast amounts of data from sensors and inspection systems to identify patterns and anomalies that might be missed by traditional methods, leading to improved quality and reduced waste.
