The Science of Burr Formation and Its Minimization in Precision Machining

What Causes Burr Formation in CNC Machining and How Can It Be Prevented?

When the cutting tool leaves the workpiece in CNC machining, it causes plastic deformation, which leads to burr formation. Different things can affect this process, such as the qualities of the material, the shape of the tool, and the cutting conditions. To understand the reasons and come up with good ways to stop them, we need to look closely at how burrs originate.

The Four Steps to Making a Burr

• Beginning: As the cutting tool gets closer to the edge of the workpiece, a part of it that has been plastically changed starts to form.
• Early Development: The edge of the workpiece bends a lot, which makes it look like it is bending.
• Pivoting Point: The edge of the material is not stable, which makes a burr form.
• Final Development: The burr keeps becoming bigger because the plastic is bending and shearing in a zone of bad deformation.

Important Things That Affect Burr Formation

There are a lot of things that affect the type and size of burrs:

• Material of the workpiece: Ductile materials tend to make bigger, longer burrs, whereas brittle materials can make burrs that are uneven and broken.
• Tool Geometry and Condition: Tools that are dull or worn out make burrs bigger. The rake angle, point angle, and cutting edge radius all play a big role in how burrs form.
• Cutting parameters including feed rate, cutting speed, and depth of cut affect the shape of burrs. In general, higher feed rates can cause burrs to get bigger.
• Process of Machining: Different varieties of burrs, like exit burrs, entrance burrs, rollover burrs, and tear burrs, are made by different operations, like drilling, milling, and turning.

Ways to Stop It

It is hard to get rid of all burrs, but there are a number of ways to greatly cut down on their formation:

• Optimize Part Design: Avoid using thin walls or sharp corners. Instead, employ radii and chamfers to spread out areas of high stress.
• Planning Tool Paths: Make tool paths that leave burrs in spots that are easier to get rid of or on portions that will be machined later.
• Backup Material: Use support plates while drilling or milling to keep the material from bending and tearing at the ends.
• Taking care of your tools: Sharpen and replace your cutting tools on a regular basis to keep them in good shape.
• Optimizing Cutting Parameters: To reduce the chances of burrs forming, change the feed rates, cutting speeds, and depths of cut.
• Coolant Application: Use the correct cutting fluids to reduce wear and tear on tools and keep burrs from forming.

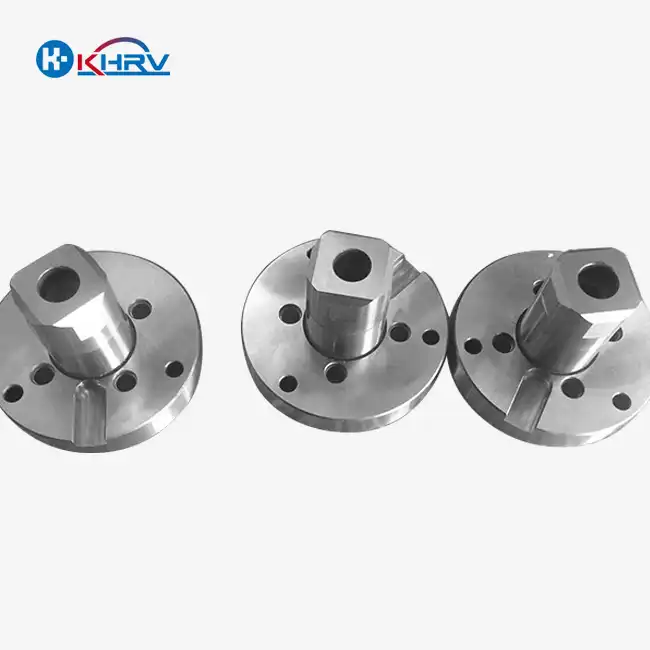

Burr-Free Machining Techniques for Aerospace and Medical Components

In industries such as aerospace and medical device manufacturing, the demand for burr-free machining is particularly high due to the critical nature of the components produced. These sectors require parts with exceptional surface finish, dimensional accuracy, and reliability. Achieving burr-free results in these applications often necessitates advanced techniques and stringent process control.

Advanced Methods for Aerospace Parts

Turbine blades and structural parts are examples of aerospace components that need to be precise and reliable. Some specific methods for burr-free machining in this field are:

• Cryogenic Machining: Using liquid nitrogen or carbon dioxide to cool the cutting area, which makes the material more brittle and less likely to generate burrs.
• High-Pressure Coolant Systems: Directing high-pressure coolant directly to the cutting edge to help get rid of chips and make burrs smaller.
• Vibration-Assisted Machining: Adding controlled vibrations to the cutting tool or workpiece to make the surface smoother and keep burrs from forming.
• Optimized Tool Coatings: Using high-tech coatings that lower friction and heat, which improves the quality of the surface and stops burrs from forming.

Exact Methods for Parts of Medical Devices

Medical items, such implants and surgical tools, need to have perfect surfaces and be safe for the body. In this field, there are ways to machine without burrs, such as:

• Micro-Machining: Making complicated forms with very little burr development by using machining centers that are very exact, down to the nanometer level.
• Using an electrochemical method that doesn't touch the material to remove it without putting mechanical stress on it is called electrochemical machining (ECM). This leaves surfaces without burrs.
• Laser machining is a very accurate way to remove material by using focused laser rays. It's great for making small features without burrs.
• Ultrasonic Machining: This method cuts hard, brittle materials with as few burrs as possible by using high-frequency waves and an abrasive slurry.

Quality Assurance and Process Control

To get consistent burr-free outputs in aerospace and medical manufacturing, you need strict process control and quality assurance measures:

• By setting up systems that watch the process in real time, problems that could lead to burrs can be found and fixed.
• Statistical Process Control (SPC) is the use of statistics to keep an eye on and change process factors that cause burrs to form.
• High-resolution imaging and metrology tools are used in advanced inspection techniques to find and explain burrs at the microscopic level.
• Setting up feedback loops between the design, inspection, and machining teams so that they can keep improving methods to get rid of burrs is an example of continuous improvement protocols.I don't know what to say.

Tool Geometry, Feed Rates, and Cutting Strategies for Minimizing Burrs

The interplay between tool geometry, feed rates, and cutting strategies plays a crucial role in achieving burr-free machining. By optimizing these parameters, manufacturers can significantly reduce burr formation and improve overall part quality.

Optimizing the Shape of Tools

The way cutting tools are made has a big effect on how burrs form. When looking at tool geometry, some important things to think about are:

• A positive rake angle usually lowers cutting forces and can make burrs smaller. But the best angle depends on the type of material being cut and the conditions of the cut.
• Clearance Angle: Enough clearance keeps the tool and workpiece from rubbing against one other, which lowers the chance of burrs forming.
• Cutting Edge Radius: A sharp cutting edge (short edge radius) usually makes less burrs, but it may wear out faster. It's important to find a balance between the sharpness of the edge and the life of the instrument.
• Tool Point Angle: When drilling, changing the point angle can make a big difference in how many exit burrs you get. For many materials, a point angle of 135 degrees works better than the typical 118 degrees.
• Helix Angle: The helix angle has an effect on chip removal and cutting forces when milling and drilling. In some cases, a larger helix angle can help keep burrs from forming.

Things to Think About When Setting the Feed Rate

The feed rate is very important for making burrs, and it can be changed to make them less likely to happen:

• Conventional Wisdom: Lower feed rates usually make smaller burrs since they use less cutting force. This relationship isn't always straight, though, and it might change based on the topic and the job.
• Different Feed Rates: Using different feed rates during the cutting process can help reduce burrs. For instance, lowering the feed rate as the tool gets closer to the hole's exit can greatly cut down on exit burrs during drilling.
• Machining at High Speed: In some circumstances, very high feed rates and spindle speeds can actually stop burrs from forming by modifying the way chips form.
• Material-Specific Optimization: The best feed rate for reducing burrs depends on the material of the workpiece. To find the ideal parameters, it is often important to run trials on specific materials.

Advanced Cutting Techniques

New ways of cutting can help a lot in reducing burrs:

• Trochoidal Milling: This method uses a circular tool path and a forward step to lower tool engagement and cutting forces. This can help keep burrs from forming, especially in hard materials.
• Methods for Step-Down: When face milling, employing a step-down method instead of a single deep cut can assist reduce edge burrs.
• Climb vs. Regular Milling: Compared to regular milling, climb milling usually makes smaller burrs, especially at the edges of the workpiece.
• Peck drilling can help control chip development and make burrs less at the hole exit when drilling deep holes.
• Orbital drilling: This method uses helical interpolation of the cutting tool, which can greatly cut down on exit burrs when producing holes.

A way to reduce burrs by using an integrated approach

For the best results in reducing burrs, it's important to look at tool shape, feed rates, and cutting procedures all at once.

• Process Simulation: Use powerful CAM software to model the machining process and find places where burrs might occur.
• Adaptive Control: Use adaptive control systems that can change cutting parameters in real time based on sensor feedback to keep the best conditions for reducing burrs.
• Things to think about when using machine tools: Make sure the machine tool is stiff enough, accurate enough, and responsive enough to carry out the cutting tactics you choose.
• Material-Specific Optimization: Create and keep up a database of the best settings for different combinations of tools and materials to make it easier to plan the process for burr-free machining.

Manufacturers can greatly cut down on burr formation by carefully thinking about and improving certain parts of the machining process. This leads to better part quality, less work that needs to be done after machining, and more productivity.

Conclusion

The study of burr formation and how to reduce it in precision machining is a complicated area that requires a variety of methods. Manufacturers may greatly minimize or get rid of burrs by learning how they form and using more advanced methods. This leads to better parts and more efficient production. As technology keeps becoming better, new equipment and methods for burr-free machining will definitely come out, pushing the limits of precision manufacturing even farther.

For businesses in fields like aerospace, making medical devices, and high-end CNC machining, investing in ways to reduce burrs is not only about making better products; it's also about getting ahead of the competition in a market that expects nothing less than perfection. Manufacturers may make sure they meet and surpass the strict standards of their industries by working with knowledgeable precision machining professionals and keeping up with the newest news in burr-free machining.

FAQ

1. What kinds of burrs do CNC machines make the most?

The most common types of burrs in CNC machining are exit burrs (which happen when the tool leaves the workpiece), entry burrs (which happen when the tool enters the material), rollover burrs (which happen when the material moves), and Poisson burrs (which happen when the material bulges due to compression).

2. What effect does the material of the workpiece have on burr formation?

The material of the workpiece has a big effect on how burrs form. Because they may change shape, ductile materials tend to make bigger, longer burrs. Brittle materials, on the other hand, may make burrs that are smaller and more broken up. The hardness, thermal conductivity, and microstructure of the material also affect the burrs.

3. Do coolants assist keep burrs from forming?

Yes, coolants can assist keep burrs from forming by controlling how much heat is created during machining. Using the right coolant can lower the temperature of the cutting, lower the friction, and make it easier for chips to get out. This can cause less plastic deformation, which in turn makes the burrs smaller. Advanced methods include cryogenic chilling and high-pressure coolant delivery can help get rid of burrs.

4. What are some unusual ways to machine that can get rid of burrs?

There are a number of non-traditional machining procedures that can produce outputs that are free of burrs or almost free of burrs. Electrical Discharge Machining (EDM) uses electrical discharges to remove material without touching it directly. Electrochemical Machining (ECM) uses an electrochemical process to dissolve material. Laser Beam Machining uses focused laser energy to remove material very precisely. These approaches can be very helpful for materials that are hard to process or shapes that are hard to machine because they might leave big burrs.

Achieve Burr-Free Precision with Wuxi Kaihan | KHRV

Are you ready to improve your precision machining skills and make things without burrs? Wuxi Kaihan Technology Co., Ltd. is a reliable partner for making high-precision parts. We have the best CNC machining centers, a skilled crew, and a dedication to quality, which makes us the best choice for your most difficult projects.

Don't let burrs lower the quality of your product or raise the expense of making it. Email us at service@kaihancnc.com today to talk about your specific needs and find out how our experience in burr-free machining might help your business. Let's work together to make your manufacturing operations even more precise and efficient.

References

1. Gillespie, L.K. (1999). Deburring and Edge Finishing Handbook. Society of Manufacturing Engineers.

2. Aurich, J.C., et al. (2009). Burrs—Analysis, control and removal. CIRP Annals, 58(2), 519-542.

3. Dornfeld, D., & Min, S. (2010). A Review of Burr Formation in Machining. Burrs-Analysis, Control and Removal, 3-11.

4. Ko, S.L., & Lee, J.K. (2001). Analysis of burr formation in drilling with a new-concept drill. Journal of Materials Processing Technology, 113(1-3), 392-398.
